Major Features：
This high-tech while easy to use HDMI Digital Microscope provides 1080p video crystal output directly.
It adopts top quality image sensor and corresponding glass microscopic lens, ensuring the best image quality in the digital microscope field.
It outputs stunning video image, so user can share full HD microscopic image with others easily, useful for students, collectors, hobbyists, testers etc to explore the microscopic world, especially useful for school teachers to share microscopic image with students.
It supports photo capture and Micro-SD card storage; it can also work on PC (Measurement function while working on PC).
We are a HDMI certified member, ensuring that we have paid royalty to the organization and can use HDMI legally.
Specs：
Magnifications: 10x-220x
Video output: 1080p Full HD
Video format: MJPEG
Photo format: JPEG
Focus Range: Manual focus from 10mm to 500mm
Frame Rate: Max 30f/s under 600 Lus Brightness

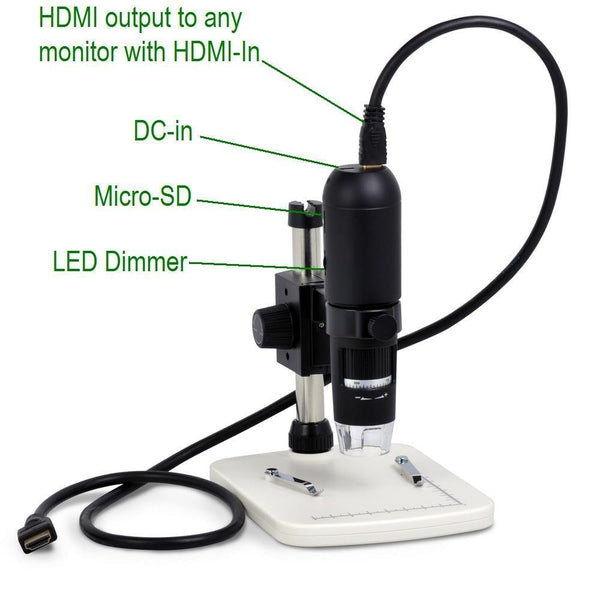

Video-output Interface: HDMI, to any monitor with HDMI-In
Storage: Micro-SD card, up to 32G (not included)
Light source: LEDs (brightness adjustable)
Power source: 5V DC
Size: 185mm (L) x 33mm (R)
Tips:

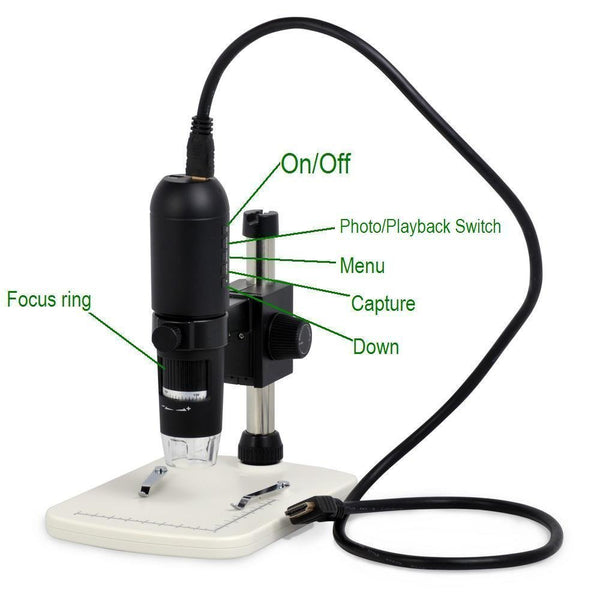

- It comes with two levels of magnification i.e. Low and High. By rotating the focusing tube toward “-“, you can get Low magnification. By rotating the focusing tube toward “+” and lower the microscope to the object observed (when the distance between the semi-transparent nozzle and the object is within 10mm), you can get High magnification.
- The 220x magnification is based on a photo captured at 5Mega pixel at the High magnification as explained above. Then you view the photo at 100%, it will be around 220x.
