Major Features:
1. CCD Color Car Rear View Reverse Parking Camera for Audi A3 S3 A4 S4 B6 A6 S6 Q7 A8 S8 RS4 RS6
2. Designed according to the license light hole install.
3. High Clear , Night Vision,Waterproof, ABS+PC Plastic material.
4. Unique Design,With reference line functions.Waterproof IP Rating:IP67-IP68 .170 degree View Angle.
Product description:
Designed For: AUDI
A3 / S3 2004-2009
A3 Cabrio 2008-2009
A4 / S4 (B6, 8E/8H) 2001-2005
A6 (4F) 2005-2009
A8 / S8 2003-2007
Q7 2007-2009
S6 2005-2009
RS4 / Avant quattro 2006-2008
RS4 Cabrio 2006-2008
RS6 Plus/Avant 2008-2009
Specifications:
TV system: PAL/NTSC optional
Effective Pixels: PAL:628*586 pixels NTSC 510*496 pixels
Horizontal Resolutions: 480 TV lines
Video Output: RCA Connector, 1.0V P-P, 75 ohm
Power Consumption: 110mA,max 300mA with IR on
Power Supply: DC12V/24V
Operating Temperature: -20 - 90 (Celsius Degree) RH95%MAX
Storage Temperature:-30-80(Celsius Degree) RH95%MAX
Lens angle: 135/170 degree
Waterproof: IP67/IP68

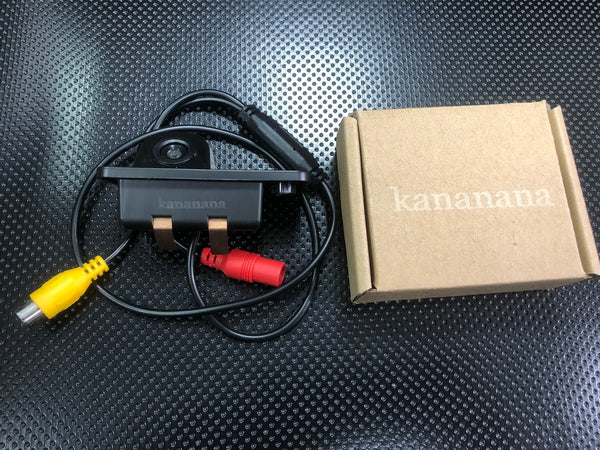

Package Contents:
1x Rear view camera
1x Power cable 1.3m 1xVideo cable 5.5m
