5Mega Pixel USB Digital Microscope with Measurement software for Windows/Mac/UVC, 10x-300x Magnifications, Handheld & Observation Stand

Regular price $49.99

Major Features:

10x-300x magnifications

5Meage true resolution

Software with measurement, compatible with Windows and Mac

Video/Photo capture

UVC camera

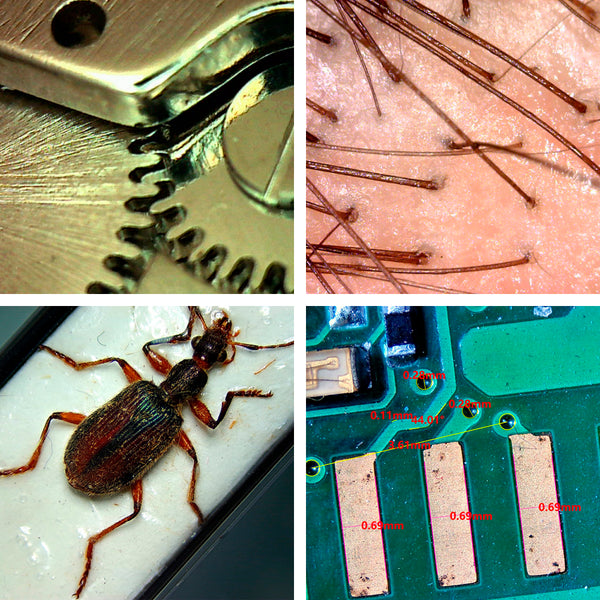

Useful for students, hobbyists, collectors, testers etc to observe insects, coins, stamps, fabrics, PCB circuit etc

Specifications:

Magnification Ratio: 10x~300x

Image sensor: 5 Mega Pixels (true resolution)

Still capture resolution: 2592x1944, 2320x1744,2048x1536,1920x1080, 1280x1024

Video capture resolution: 2592x1944, 2320x1744,2048x1536,1920x1080, 1280x1024

Focus Range: Manual focus from 0mm to 150mm

Video format: AVI

Photo format: JPEG

Light source: LEDs (brightness adjustable)

PC interface: USB2.0

Power source: 5V DC from USB port

Operation system: Windows 7 / 8 / 10, Mac 10.12 and later

OSD language: English, Deutsch, Spanish, Russian, Italian, French, Portuguese, Dutch, Polish, Japanese, Korean, Chinese

Bundle software: MicroCapture Plus (with measurement for Win/Mac)

Size: Microscope: 110mm (L) x 33mm (R)

Tips:

  1. It comes with two levels of magnifications i.e. Low and High. By rotating the focusing tube toward “-“, you can get Low magnification. By rotating the focusing tube toward “+” and lower the microscope to the object to observed (when the distance between semi-transparent nozzle and the object is within 10mm), you can get High magnification.
  2. The 300x magnification is based on a photo captured at 5Mega pixel at the High magnification as explained above. Then you view the photo at 100%, it will be around 300x.
  3. If you need more distance between the microscope and the object observed, you can remove the semi-transparent nozzle by hand.
  4. If you need another type of more professional stand, you can buy it from our store the “Professional Stand for Mustcam USB Digital Microscope”.
